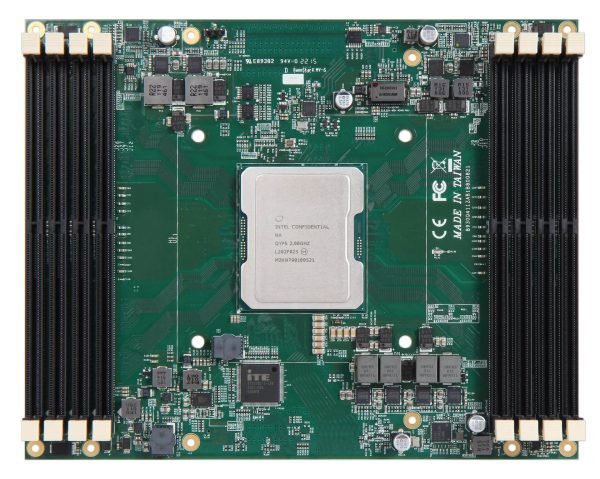

PCOM-B800GT，COM-HPC 服務器，尺寸 E 模塊 (200mm x 160mm)，基于 Intel? Xeon? D-2700 處理器。該平臺包括 Intel? Deep Learning Boost (Intel? DL Boost)，以加速 int8 工作負載的處理具有從 4 個內核到 20 個內核的選項。 多操作系統支持，包括實時操作系統和管理程序支持，讓您將工作負載整合到單個設備上。PCOM-B800GT，提供多達 8 個 10G KR 接口、32 個通道 PCIe 4.0、16 個通道 PCIe 3.0、TPM 2.0 和 8 個 DDR4 DIMM 插 槽，支持最大 1024GB 內存大小，以滿足虛擬化工作整合邊緣環境。
| General | ||
| Product | PCOM-B800GT | |
| Form Factor | COM-HPC Server, Size E (200mm x 160mm) | |
| Processor | Intel? Xeon? D-2700 Family | |
| Ethernet | Intel? I226LM / I226IT | |
| BIOS | AMI BIOS | |
| ECC | Yes | |
| Memory | 8x DDR4 DIMMs up to 1024GB at 2933 MT/s with RDIMM | |
| I/O Interface | ||
| SATA | 2 x SATA III | |
| USB | 4 x USB 3.2 Gen1/USB 2.0 | |
| Ethernet |
4x 25/10G KR / 8x 10G KR (Depend on SKU) 2.5 GbE LAN with TSN |
|
| Serial I/O | GPIO | 12 bit GPIO |
| I2C | Frequency : 100kHz – 1MHz | |
| SMBus | Frequency : 100kHz – 1MHz | |
| UART | 2 Serial Port (TX/RX/CTS/RTS) | |
| PCI Express | 32x PCIe 4.0 from IIO 16x PCIe 3.0 from HSIO |
|
| Display | N/A | |
| Security | TPM 2.0, Intel?AES | |
| MECHANICAL & ENVIRONMENT | ||
| Dimension | 200mm x 160mm | |
| Power DC IN | Normal: +12V DC AT/ATX mode |
|
| Storage Temperature | -40°C to 80°C | |
| Operating Temperature | -40°C to 80°C (Selected SKUs: 0°C to 60°C ) |
|
| Certification | Contact us | |
| MTBF | TBD | |
| Vibration | TBD | |
| OS | Windows10 IoT Enterprise LTSC Windows Server Linux |
|
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B800GT-D2796TE | AB1-3L51Z | In Development |
| PCOM-B800GT-D2775TE | AB1-3P11Z | In Development |
| PCOM-B800GT-D2752TER | AB1-3P12Z | In Development |
| PCOM-B800GT-D2733NT | AB1-3P13Z | In Development |
| PCOM-B800GT-D2712T | AB1-3P14Z | In Development |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler for 2U System | TBD | In Development |
| Cooler for 1U System | TBD | In Development |
| Heat-sink | TBD | In Development |
