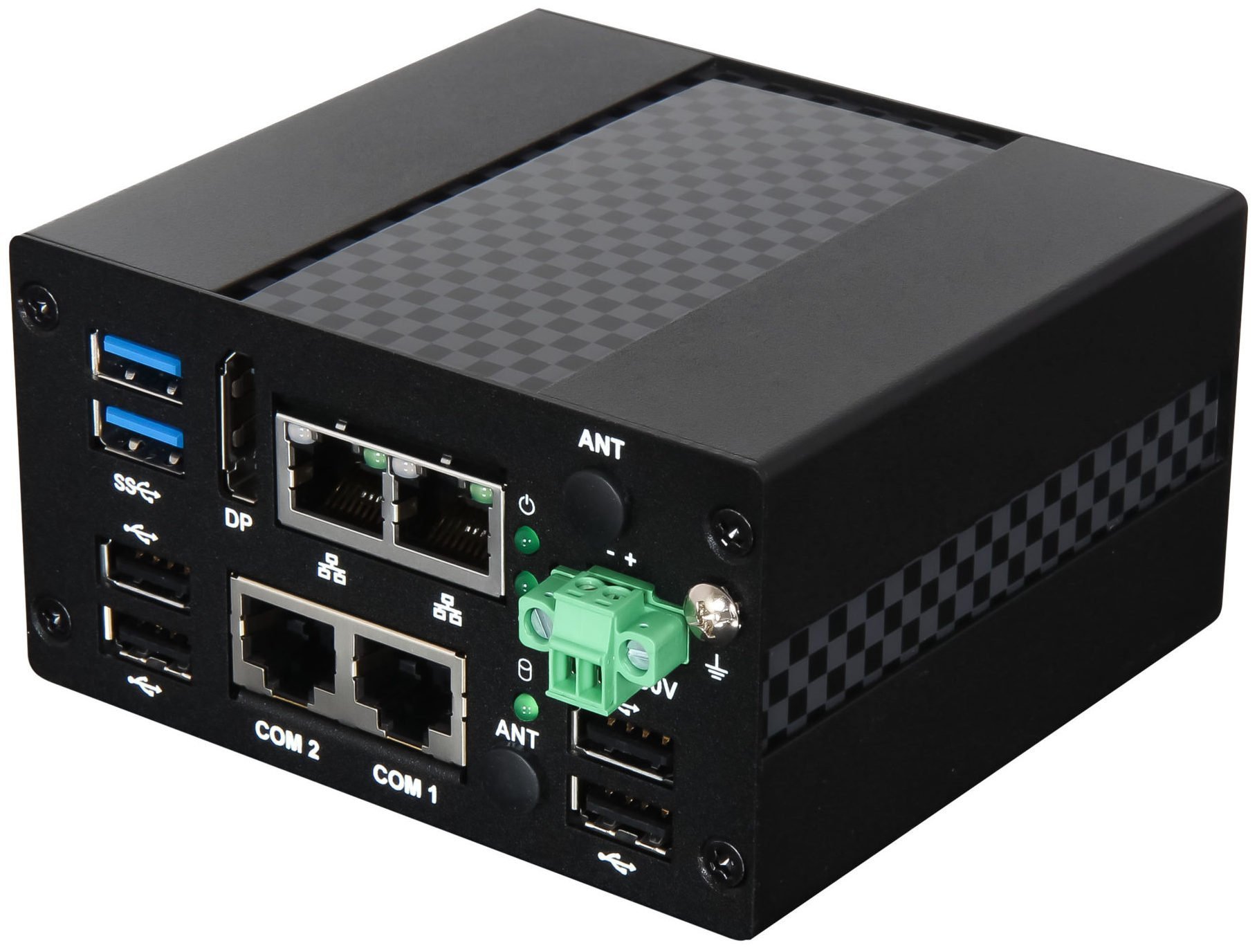

LYNX-612G is a compact, fan-less and cable-less PC adapting low power Intel? Apollo Lake processor. Targeting as an IoT gateway, the small system equips rich communication interfaces for data acquisition and server connection. Besides, reserved M.2 socket enables wireless function for remote controllability and manageability. Last but not least, it supports Universal IoT Connector Standard (UIC) to realize fast and easy cloud connectivity.
| General | |
| Processor | Intel? Celeron? N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
| Memory | 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional) |
| Storage | 32GB onboard eMMC 5.0 flash; up to 256GB (Optional) |
| Power Input | 12-30VDC (+/- 20%) |
| Operating System | Windows? 10 IoT Enterprise (64bit) Yocto v2.7 |
| Expansion | 1x M.2 Key E 2230 for wireless module |
| Other | TPM 2.0 onboard |
| Basic I/O Interface | |
| Power Connector | 1x 2-Pin Terminal Block |
| Ethernet | 2x 10/100/1000 GbE (Intel? I210) |
| USB | 2x USB 3.0 |
| Display | 1x DP v1.4 4096 x 2160 @ 60Hz |
| Extended I/O Interface | |
| COM/ Console | 2x RS-232 |
| USB | 4x USB 2.0 |
| Expansion | 1 x M.2 Key B 2242 for storage 1 x full-size Mini-PCIe |
| Certification | |
| CE (EN 55032; EN 55024/ EN 55035) | |
| CE (EN 61000-6-4; EN 61000-6-2) | |
| FCC (Part 15 Subpart Class A) | |
| LVD (EN 62368-1) | |
| Environment & Mechanical | |
| Storage Temperature | -40 °C ~ 85 °C |
| Operating Temperature | 0°C ~ 50°C |
| Permissible Humidity | 5-95% RH operating, non-condensing 5-95% RH storage, non-condensing |
| Vibration | 1G with DIN-rail mounting 5G with wall mounting (IEC/EN 60068-2-6) |
| Shock | 15G with DIN-rail mounting 50G with wall mounting (IEC/EN 60068-2-27) |
| Degree of Protection | IP 30 |
| Dimension | 100mm (W) x 53.5mm (H) x 92 mm (D) |
| Net Weight | 0.53 KG |
| Mounting | DIN-rail / Wall Mount |
| Optional Accessories | |
| Power Adaptor | 2-pin terminal block connector to DC jack cable 60W AC to DC Power Adaptor via DC jack |
| Video Adaptor | DP to VGA/ DP to DVI-D |
| Console Adaptor | RJ45 to Console cable 1.8 M |
