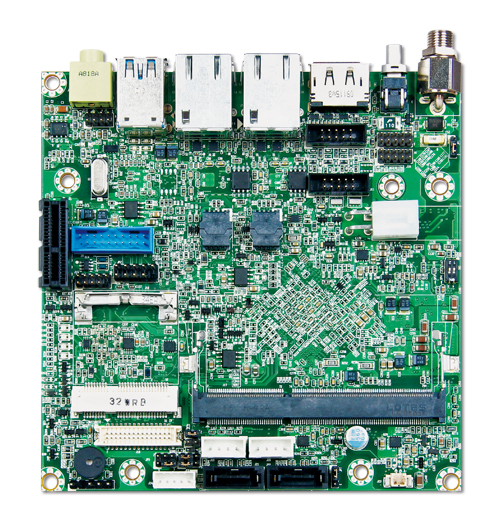

NANO-6060

NANO-6060

Intel Atom? E3800 family SoC based NANOITX. Board with Dual displays, Gigabit Ethernet, Audio, USB 3.0, micro SD and SATA

產品特色

  • Intel? Bay Trial-I SoC based platform
  • 1x 204-pin SO-DIMM supports DDR3L up to 4GB
  • Multiple displays by VGA, DP, dual channel 24 bit LVDS
  • Supports 2x SATA II ports, 1x micro SD socket, and 4x USB 3.0 ports
  • 1x half size mini-PCIe socket and PCIe x1 slot for expansion
  • Supports DC 12V input

產品描述

NANO-6060 build with Intel Atom? processor E3800 family that not only outputs under 10W for fan-less applications, but also supports a wide industrial temperature from -40oC to 85oC. With its superior up to Quad Core processing power and high capability. Portwell have taken advantage of such technology to furnish a series of products that can meet multiple industrial requirements such as fanless, cost-effective of CPU performance or compact systems.

規格

Specifications
General
Processor – Intel Atom? E3800 family processor – Cache up to 2MB (for Quad Core) – DPM (Defect Per Million devices) <50 – Support Intel? VT-x techology
BIOS Phoenix EFI BIOS
Memory 1x DDR3L 1066/1333MT/s non-ECC SO-DIMM up to 4GB
Storage Devices – 2x SATA II -1x Micro-SD socket
Watchdog Timer Programmable by embedded controller
Hardware Monitoring – Temperature (CPU & System) – Voltage (CPU Vcore,12V, 5V, 3.3V, 1.35V)
Expansion Interface – 1x PCIe x1 slot – 1x half size mini-PCIe slot
I/O INTERFACE
Audio – HDA controller integrated in Intel? SoC – Realtek ALC892 HDA codec, Audio Jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in
Ethernet – 2x Dual Intel? I210IT Gigabit Ethernet controller (for E3827/ E3845 only) – 2x RJ45 connectors on rear I/O (for E3827/ E3845 only) – 1x Single Intel? I210IT Gigabit Ethernet controller and 1xRJ45 connector on rear I/O for E3815
Serial port 1x RS-232/422/485 on board connector (selected by bios)
USB – 2x USB 3.0 ports on rear I/O – 2x USB 2.0 and 2x USB 3.0 ports on board with pitch 2.0 header
GPIO 8bit configurable controlled by embedded controller
DISPLAY
Graphic Controller – Intel? Gen7 graphic engine supports DirectX 11, OpenGL? 4.0 – Video decode hardware acceleration supports for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats
Display Interface – LVDS: Dual channel 24bit LVDS on board connector, resolution up to 1920×1200 @60Hz – VGA: One on-board DB-15 connector, resolution up to 1920×1200 (WUXGA) – DP: One DP port on rear I/O, resolution up to 2560×1600
Mechanical & Environment
Dimension 120mm(L) x 120mm(W) ; 4.72”(L) x 4.72”(W)
Power Supply DC 12V input
Environment – Operation temperature: -40°C~85°C – Storage temperature: -40°C~85°C – Relative humidity : 5%~95%, non-condensing
Certification CE,FCC Class B
MTBF Over 100,000hrs at 55°C

訂購指南

Ordering Guide
AB1-3A45 (R).NANO-6060- E3815 Nano-ITX ESB. Intel Atom? E3815 1.46GHz Single Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/single GbE LAN/micro SD
AB1-3A46 (R).NANO-6060- E3827 Nano-ITX ESB. Intel Atom? E3827 1.75GHz Dual Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/ dual GbE LAN/micro SD
AB1-3A47 (R).NANO-6060- E3845 Nano-ITX ESB. Intel Atom? E3845 1.91GHz Quad Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/ DP/dual GbE LAN/micro SD

包裝清單

Packing List
One NANO-6060 NANO-ITX Main Board
One Passive Heat Spreader
One Installation CD
