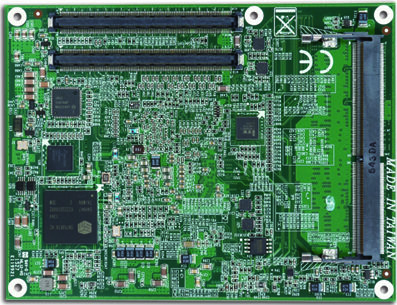

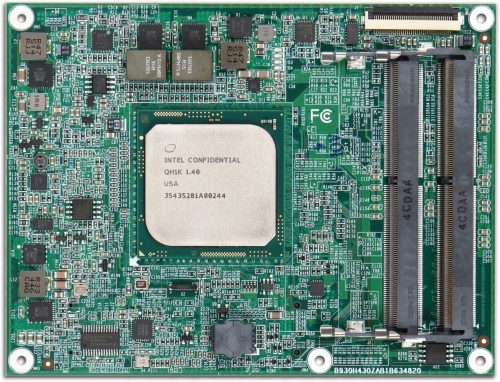

Portwell PCOM-B634VG is designed with Intel? new Xeon processor with 16 CPU cores and DDR4 ECC/Non-ECC SO-DIMM support which provide high CPU computing, excellent Ethernet performance. Extend PCIE Gen3 ports in PCOM-B634 can support high speed IO card for more application. With VGA and legacy interface support, customer can upgrate system easy and fast.
| Model Name | PCOM-B634VG |
|---|---|
| Form Factor (mm) | COM Express? Basic (125 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | Intel?Xeon?D Processor* Intel? Xeon?D1577* Intel? Xeon?D1548 Intel? Xeon?D1527 Intel? Pentium?D1519 Intel? Pentium?D1517 Intel? Pentium?D1508 Up to 16 CPU Cores* 12M L2 Cache* |
| Chipset | SoC |
| Memory | DDR4 2400 MT/s* 3 SO-DIMM Sockets* Non-ECC/ ECC* Dual Channel* |
| USB | 4x USB 3.0 7x USB 2.0 |
| PCI Express | 1x PCIe 3.0 x16 8x PCIe 2.0 x1 |
| Ethernet | Intel? I210IT 2x KR(10GbE) |
| Sound | Intel? High Definition Audio |
| Graphic Controller | SM750 |
| Carrier Board | PCOM-C609 (Type 6) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B634VG-D-1577 | AB1-3D94 | Available |
| PCOM-B634VG-D-1548 | AB1-3D95 | Available |
| PCOM-B634VG-D-1527 | AB1-3D96 | Available |
| PCOM-B634VG-D-1519 | AB1-3D97 | Available |
| PCOM-B634VG-D-1517 | AB1-3D98 | Available |
| PCOM-B634VG-D-1508 | AB1-3D99 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| PCOM-B634VG Cooler | B9971410 | Available |
| PCOM-C609(uATX ATX Carrier Board) | AB1-3D19 | Available |
