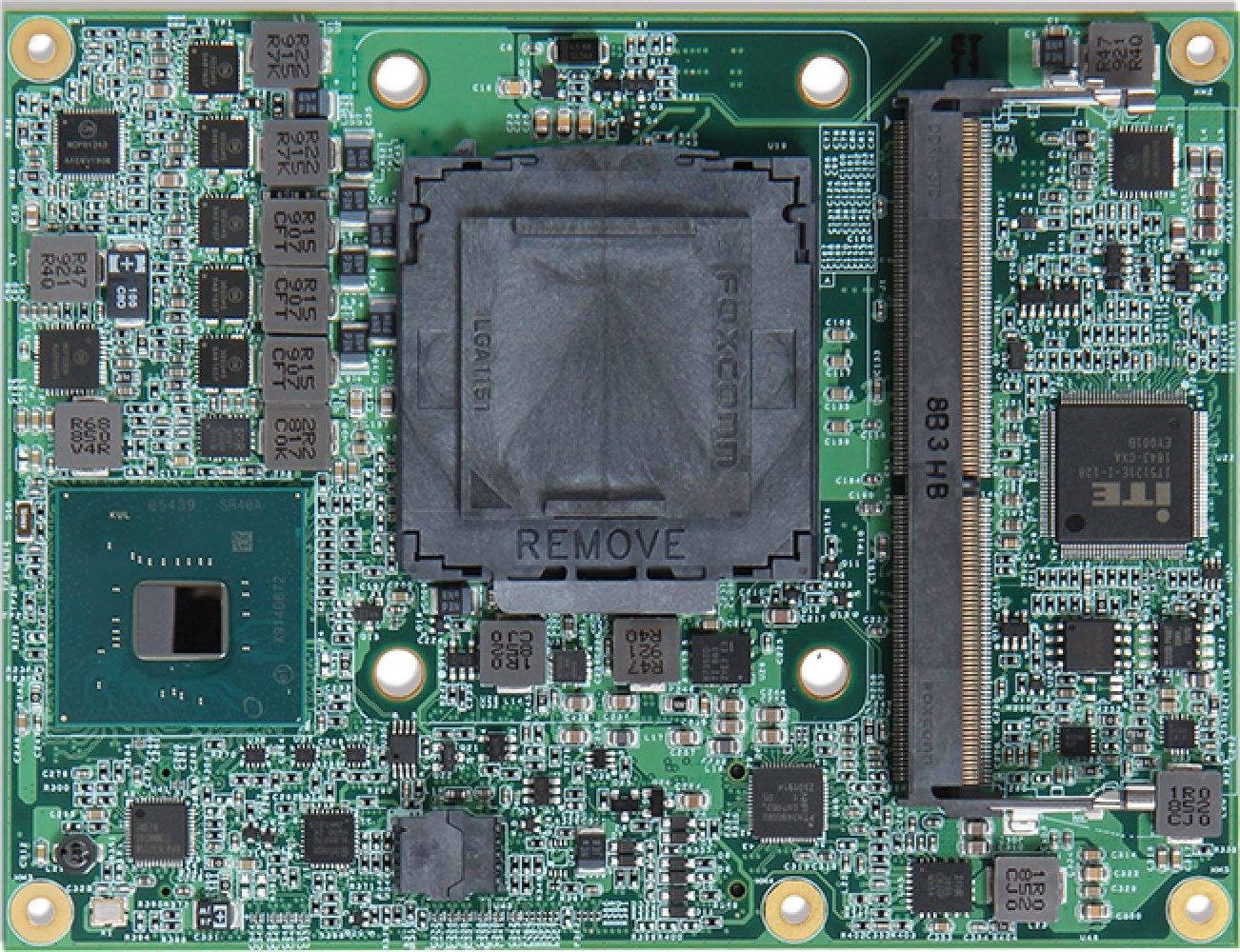

Type 6 COM Express? 模塊計算機PCOM-B654GL搭載英特爾酷睿與賽揚處理器并與COMe 3.0 Type 6 carrier板兼容，并且桌上型處理器提供比行動版更高運算效能與較低成本。PCOM-B654GL依不同型號支持修正錯誤/非修正錯誤內存DDR4滿足不同應用，并提供一個PCIe x16、八個 PCIe x1(另外選項:一個PCIe x4)、四個USB 3.2 Gen2與四個SATA III。
| Model Name | PCOM-B654GL |
|---|---|
| Form Factor (mm) | COM Express? Compact (125 x 95mm) |
| COM Type | Type 6 |
| CPU/Clock/Cache | Intel? 8th Generation Core? 35W Desktop processor* Intel? i7-8700T Intel? i5-8500T Intel? i3-8100T Intel? Celeron? G4900T* Up to 6 CPU cores* 2MB to 12MB cache* |
| Chipset | Q370/C246 |
| Memory | DDR4 2400MT/s* Non-ECC/ECC* Dual Channel* |
| USB | 4x USB 3.2 Gen2 8x USB 2.0 |
| PCI Express | 1x PCIe 3.0 x16 8x PCIe 3.0 x1 |
| Ethernet | Intel? I219LM |
| Sound | Intel? High Definition Audio |
| Graphic Controller | Intel? UHD Graphics 630* Intel? UHD Graphics 610* |
| Carrier Board | PCOM-C60B (Type 6) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B654GL-C24 | AB1-3J46 | Available |
| PCOM-B654GL-Q37 | AB1-3J47 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| PCOM-C605(MINI-ITX carrier board | AB1-3998 | Available |
| PCOM-C60B(ATX carrier board | AB1-3G22Z | Contact us |
| Coole | B9971810 | Available |
