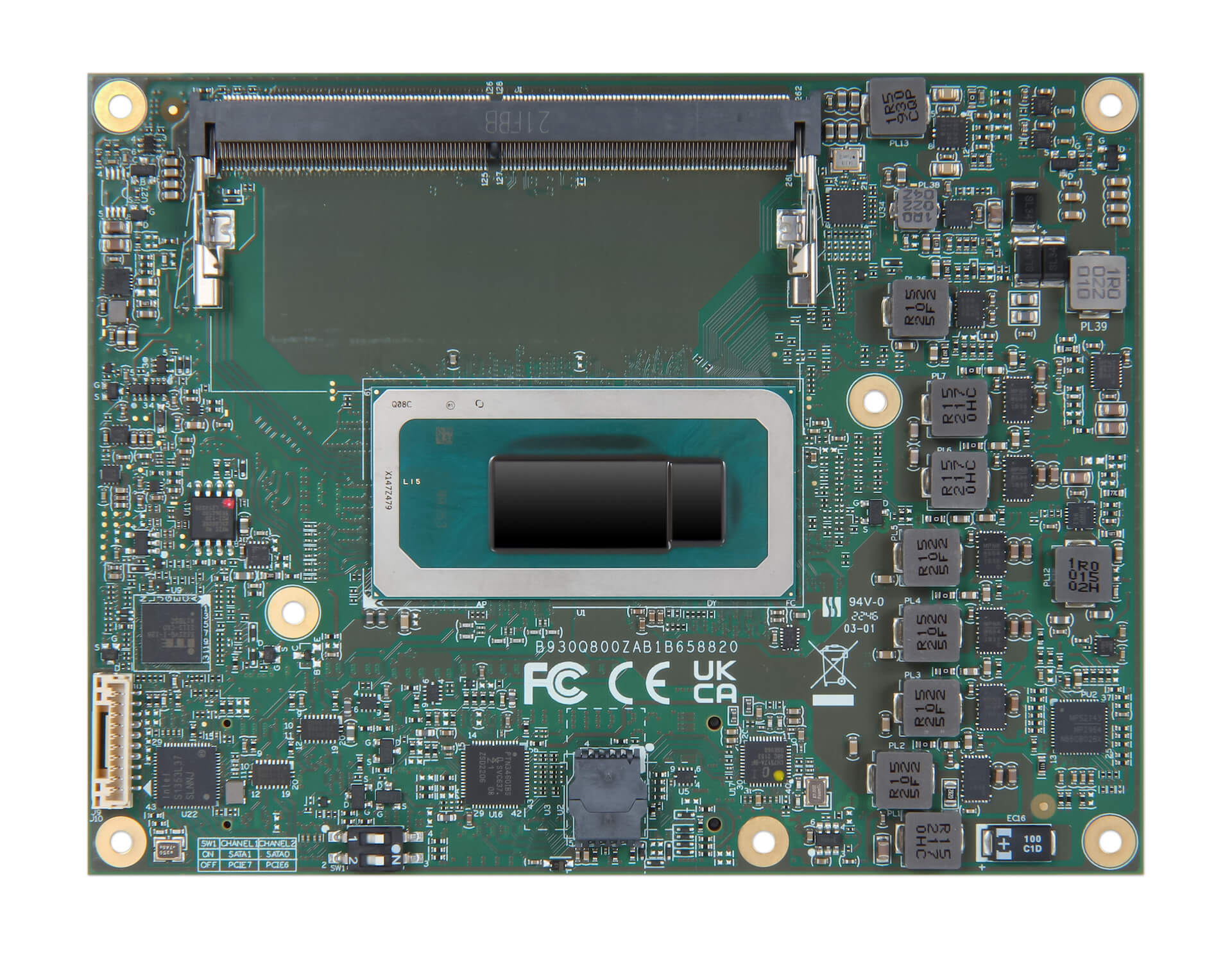

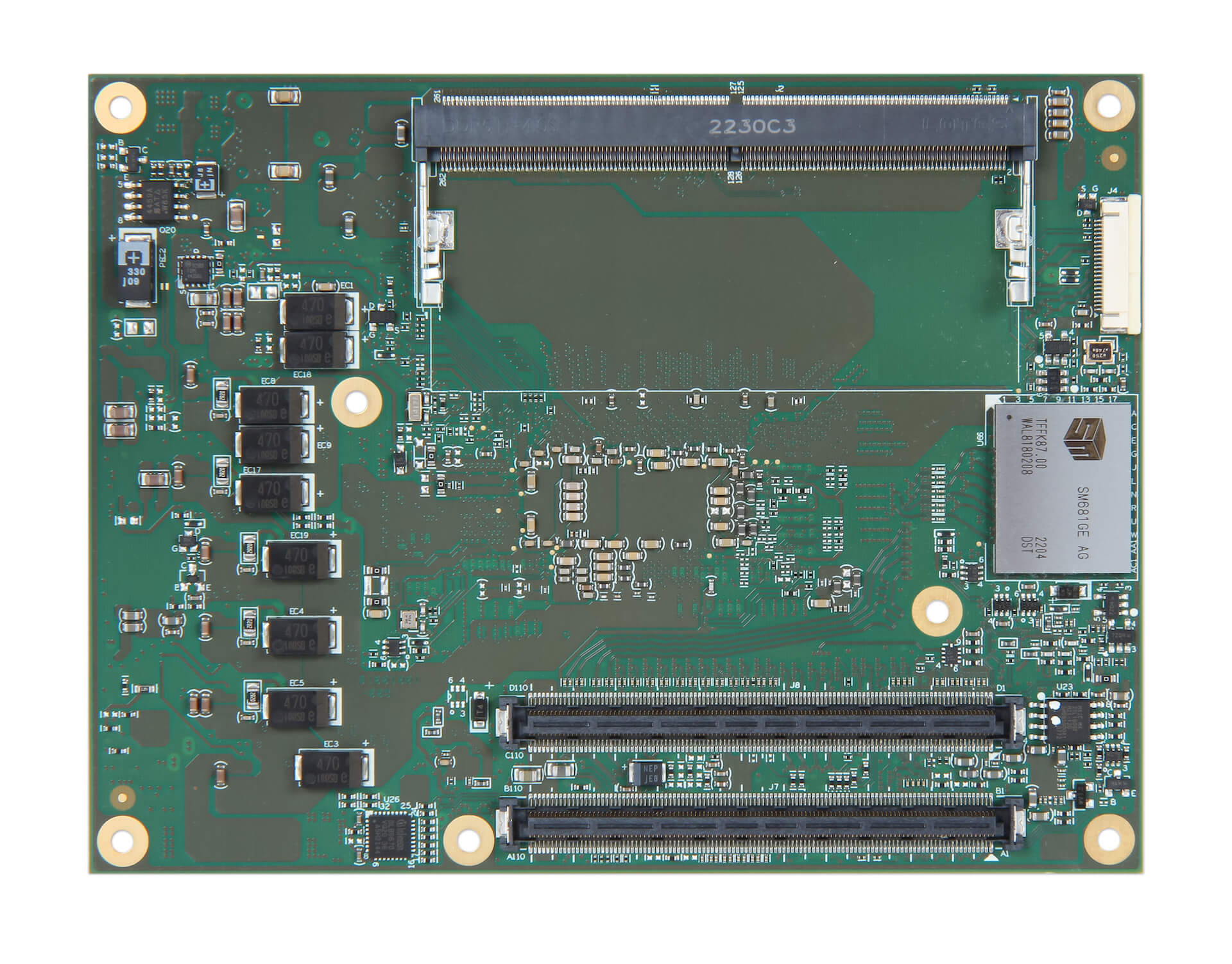

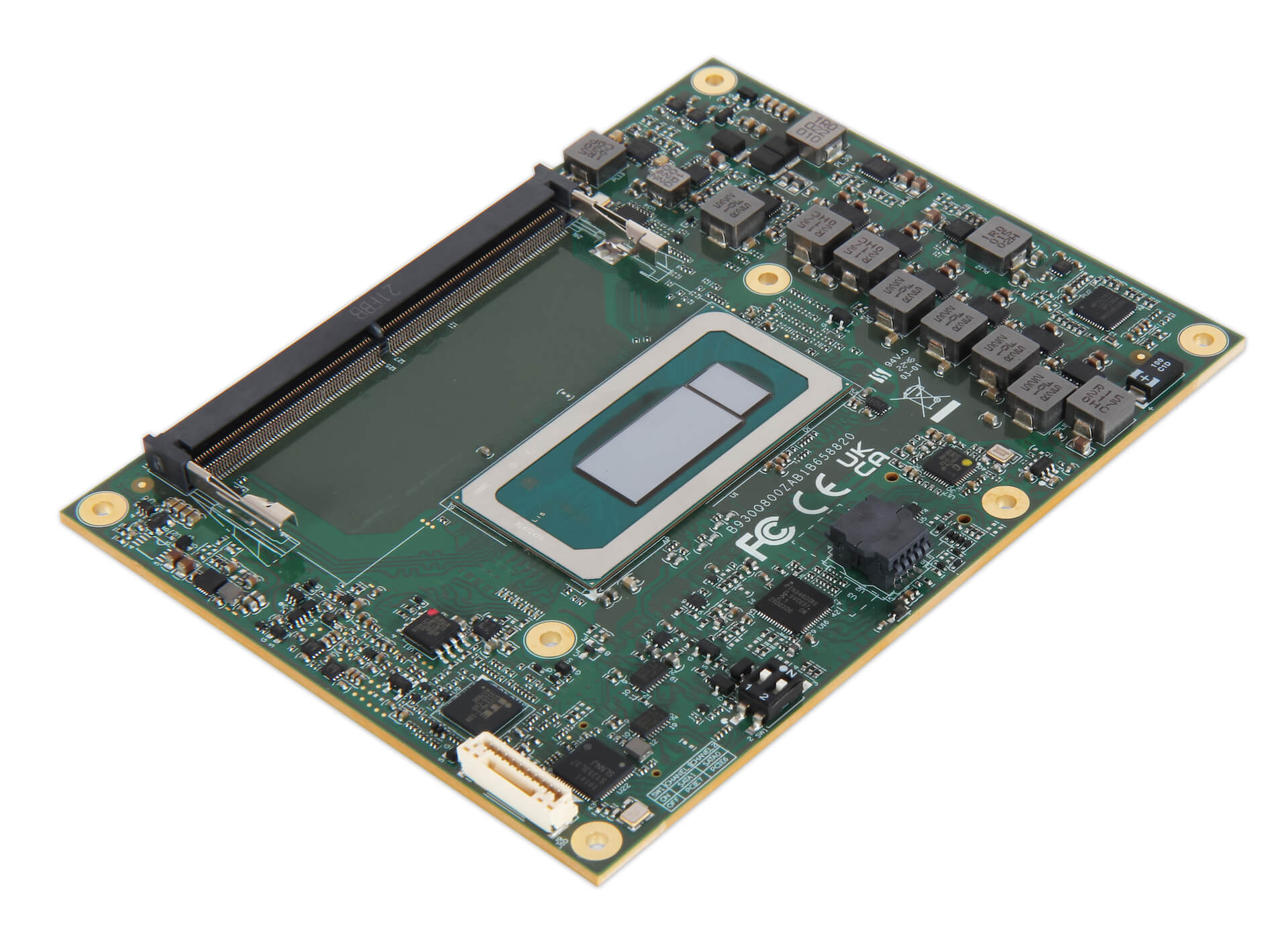

COM Express模塊計算機搭載 Intel? 12th / 13th Gen H/P/U平臺。與標準COM Express Rev3.1兼容。平臺采用Intel 7 lithography與VNNI指令集，提供先進運算能力與 15~45W熱能符合廣大情境領域應用。PCOM-B658VGL支持PCIe Gen4 lanes與2x Non-ECC DDR5 SO-DIMM適合重 要任務應用與人工智能邊緣運算。它也提供最高7x PCIe Gen3 x1 lanes, 2x optional USB4(alternative with DDI), 4x USB 3.2 Gen 2與2x SATA III。完整且彈性的I/O容量也滿足廣泛的工業/嵌入式應用
| General | |||
| 產品 | PCOM-B658VGL | ||
| 尺寸 | COM Express Type6 Basic Size (125 X 95mm) | ||
| CPU系列 | H series | P series | U series |
| 核心P+E/線程 | Up to 6P + 8E/20T | Up to 6P + 8E/16T | Up to 2P + 8E/12T |
| 頻率 | 2.1 ~ 2.7 GHz | 1.7 ~ 1.9 GHz | 1.1 ~ 1.7 GHz |
| Turbo頻率 | Up to 5.0 GHz | Up to 4.8 GHz | Up to 4.9 GHz |
| Intel? 智能快取 | Up to 24 MB | Up to 24 MB | Up to 12 MB |
| Intel? Gfx EU | Up to 96 EU | Up to 96 EU | Up to 96 EU |
| 圖形最大頻率. | Up to 1.40 GHz | Up to 1.40 GHz | Up to 1.30 GHz |
| 處理器TDP (Up / Nominal / Down) |
65W / 45 W / 35 W | 35W / 28 W / 20W | 28W / 15 W / 12W |
| 平臺路徑控制器 | SoC | ||
| 內存種類/速度 | DDR5 SO-DIMM up to 64GB 4800MT/s | ||
| ECC內存支持 | Non-ECC SO-DIMM (Support IBECC on industrial SKU) |
||
| I/O 界面 | |||
| SATA | 2x SATA (share with PCIe lanes) | ||
| USB | 2x USB4 (option) 4x USB 3.2 Gen2 8x USB 2.0 |
||
| 以太網絡 | Intel? I226 series (Support TSN/TCC on industrial SKU) | ||
| Serial I/O | GPIO | 8 bit GPIO (default 4 input/4 output) | |
| I2C | Baud Rate: 400KHz | ||
| SMBus | Baud Rate: 100KHz | ||
| UART | TX/RX signal only | ||
| PCI Express Gen4 | 1x Gen4 x8 (only H series), 2x Gen4 x4 (All series) | ||
| PCI Express Gen3 | 7x Gen 3.0 x1 (2 lanes share with SATA) | ||
| 儲存 | Up to 1TB onboard NVMe SSD (share with PCIe Gen4 x4 lanes) | ||
| 顯示器 | 模塊顯示器接口 | 輸出選項 | 解析 |
| eDP / LVDS (default eDP) | eDP up to HBR3 | 3840×2160@120Hz | |
| LVDS (24bit, dual channel) | 1920 x 1200@60Hz | ||
| DDI | DP up to HBR3 | 3840×2160@120Hz | |
| HDMI 2.1 | 3840×2160@120Hz | ||
| VGA | VGA | 1920 x 1200@60Hz | |
| 安全 | TPM 2.0 | ||
| CPU SKU 清單 (H series) | ||||||
| 中央處理器系列 | H 系列嵌入式 | H 系列工業用 | ||||
| i7-13800HE | i5-13600HE | i3-13300HE | i7-13800HRE | i5-13600HRE | i3-13300HRE | |
| 核心P+E/線程 | 6P + 8E/20T | 4P + 8E/16T | 4P + 4E/12T | 6P + 8E/20T | 4P + 8E/16T | 4P + 4E/12T |
| 頻率 | 2.5 GHz | 2.7 GHz | 2.1 GHz | 2.5 GHz | 2.7 GHz | 2.1 GHz |
| Turbo頻率 | 5.0 GHz | 4.8 GHz | 4.6 GHz | 5.0 GHz | 4.8 GHz | 4.6 GHz |
| Intel? 智能快取 | 24 MB | 18 MB | 12 MB | 24 MB | 18 MB | 12 MB |
| Intel? Gfx EU | 96 EU | 80 EU | 48 EU | 96 EU | 80 EU | 48 EU |
| 圖形最大頻率 | 1.40 GHz | 1.40 GHz | 1.30 GHz | 1.40 GHz | 1.40 GHz | 1.30 GHz |
| 影像譯碼盒 | 2 | 2 | 1 | 2 | 2 | 1 |
| 處理器TDP (最高/名義上/最低) |
65W / 45 W / 35 W | 65W / 45 W / 35 W | ||||
| 頻內錯誤修正代碼 | No | Yes | ||||
| TSN/TCC | No | Yes | ||||
| 支持溫度 | 0°C to 60°C | -40°C to 85°C | ||||
| CPU SKU 清單 (P series) | |||||||
| 中央處理器系列 | P 系列嵌入式 | P 系列工業用 | |||||
| i7-1370PE | i5-1350PE | i5-1340PE | i3-1320PE | i7-1370PRE | i5-1350PRE | i3-1320PRE | |
| 核心P+E/線程 | 6P + 8E/16T | 4P + 8E/16T | 4P + 8E/16T | 4P + 4E/12T | 6P + 8E/16T | 4P + 8E/16T | 4P + 4E/12T |
| 頻率 | 1.9 GHz | 1.8 GHz | 1.8 GHz | 1.7 GHz | 1.9 GHz | 1.8 GHz | 1.7 GHz |
| Turbo頻率 | 4.8 GHz | 4.6 GHz | 4.5 GHz | 4.5 GHz | 4.8 GHz | 4.6 GHz | 4.5 GHz |
| Intel? 智能快取 | 24 MB | 12 MB | 12 MB | 12 MB | 24 MB | 12 MB | 12 MB |
| Intel? Gfx EU | 96 EU | 80 EU | 80 EU | 48 EU | 96 EU | 80 EU | 48 EU |
| 圖形最大頻率 | 1.40 GHz | 1.40 GHz | 1.35 GHz | 1.35 GHz | 1.40 GHz | 1.40 GHz | 1.35 GHz |
| 影像譯碼盒 | 2 | 2 | 2 | 1 | 2 | 2 | 1 |
| 處理器TDP (最高/名義上/最低) |
35W / 28 W / 20W | 35W / 28 W / 20W | |||||
| 頻內錯誤修正代碼 | No | Yes | |||||
| TSN/TCC | No | Yes | |||||
| 支持溫度 | 0°C to 60°C | -40°C to 85°C | |||||
| CPU SKU 清單 (U series) | ||||||||
| 中央處理器系列 | U 系列嵌入式 | U 系列工業用 | ||||||
| i7-1365UE | i5-1345UE | i5-1335UE | i3-1315UE | U300E | i7-1365URE | i5-1345URE | i3-1315URE | |
| 核心P+E/線程 | 2P + 8E/12T | 2P + 8E/12T | 2P + 8E/12T | 2P + 4E/8T | 1P + 4E/5T | 2P + 8E/12T | 2P + 8E/12T | 2P + 4E/8T |
| 頻率 | 1.7 GHz | 1.4 GHz | 1.3 GHz | 1.2 GHz | 1.1 GHz | 1.7 GHz | 1.4 GHz | 1.2 GHz |
| Turbo頻率 | 4.9 GHz | 4.6 GHz | 4.5 GHz | 4.5 GHz | 4.3 GHz | 4.9 GHz | 4.6 GHz | 4.5 GHz |
| Intel? 智能快取 | 12 MB | 12 MB | 12 MB | 10 MB | 8 MB | 12 MB | 12 MB | 10 MB |
| Intel? Gfx EU | 96 EU | 80 EU | 80 EU | 64 EU | 48 EU | 96 EU | 80 EU | 64 EU |
| 圖形最大頻率 | 1.30 GHz | 1.25 GHz | 1.25 GHz | 1.20 GHz | 1.10 GHz | 1.30 GHz | 1.25 GHz | 1.20 GHz |
| 影像譯碼盒 | 2 | 2 | 2 | 1 | 1 | 2 | 2 | 1 |
| 處理器TDP (最高/名義上/最低) |
28W / 15 W / 12 W | 65W / 45 W / 35 W | ||||||
| 頻內錯誤修正代碼 | No | Yes | ||||||
| TSN/TCC | No | Yes | ||||||
| 支持溫度 | 0°C to 60°C | -40°C to 85°C | ||||||
| 機構與環境 | |
| 尺寸 | 125 x 95mm |
| 直流電輸入 | Normal: +12V DC AT/ATX mode |
| 儲存溫度 | -40°C to 85°C |
| 運作溫度 | 0°C to 60°C -40°C to 85°C(Industrial SKU) |
| 認證 | Contact us |
| MTBF | TBD |
| 震動 | TBD |
| 操作系統 | Windows 10/11 Ubuntu |
| 產品 | 訂購P/N | 狀態 |
|---|---|---|
| PCOM-B658VGL-13800HE | AB1-3R24 | Available |
| PCOM-B658VGL-13600HE | AB1-3R52 | Available |
| PCOM-B658VGL-13300HE | AB1-3R51 | Available |
| PCOM-B658VGL-1370PE | AB1-3R50 | Available |
| PCOM-B658VGL-1350PE | AB1-3R49 | Available |
| PCOM-B658VGL-1340PE | AB1-3R63 | Available |
| PCOM-B658VGL-1320PE | AB1-3R48 | Available |
| PCOM-B658VGL-1365UE | AB1-3R47 | Available |
| PCOM-B658VGL-1345UE | AB1-3R46 | Available |
| PCOM-B658VGL-1335UE | AB1-3R64 | Available |
| PCOM-B658VGL-1315UE | AB1-3R45 | Available |
| PCOM-B658VGL-U300E | AB1-3R44 | Available |
| PCOM-B658VGL-13800HRE | TBD | In Development |
| PCOM-B658VGL-13600HRE | TBD | In Development |
| PCOM-B658VGL-13300HRE | TBD | In Development |
| PCOM-B658VGL-1370PRE | TBD | In Development |
| PCOM-B658VGL-1350PRE | TBD | In Development |
| PCOM-B658VGL-1320PRE | TBD | In Development |
| PCOM-B658VGL-1365URE | TBD | In Development |
| PCOM-B658VGL-1345URE | TBD | In Development |
| PCOM-B658VGL-1315URE | TBD | In Development |
| 配件 | 訂購P/N | 狀態 |
|---|---|---|
| Cooler (Heatpipe) | B9972160 | Available |
| Heatsink (Heatpipe) | B830B940 | Available |
| Heatspreader (Heatpipe) | B830B950 | Available |
| PCOM-C605R Mini-ITX Carrier |
AB1-3P78 | Available |
| PCOM-C60B ATX Evaluation Carrier |
AB1-3G22 | Available |
