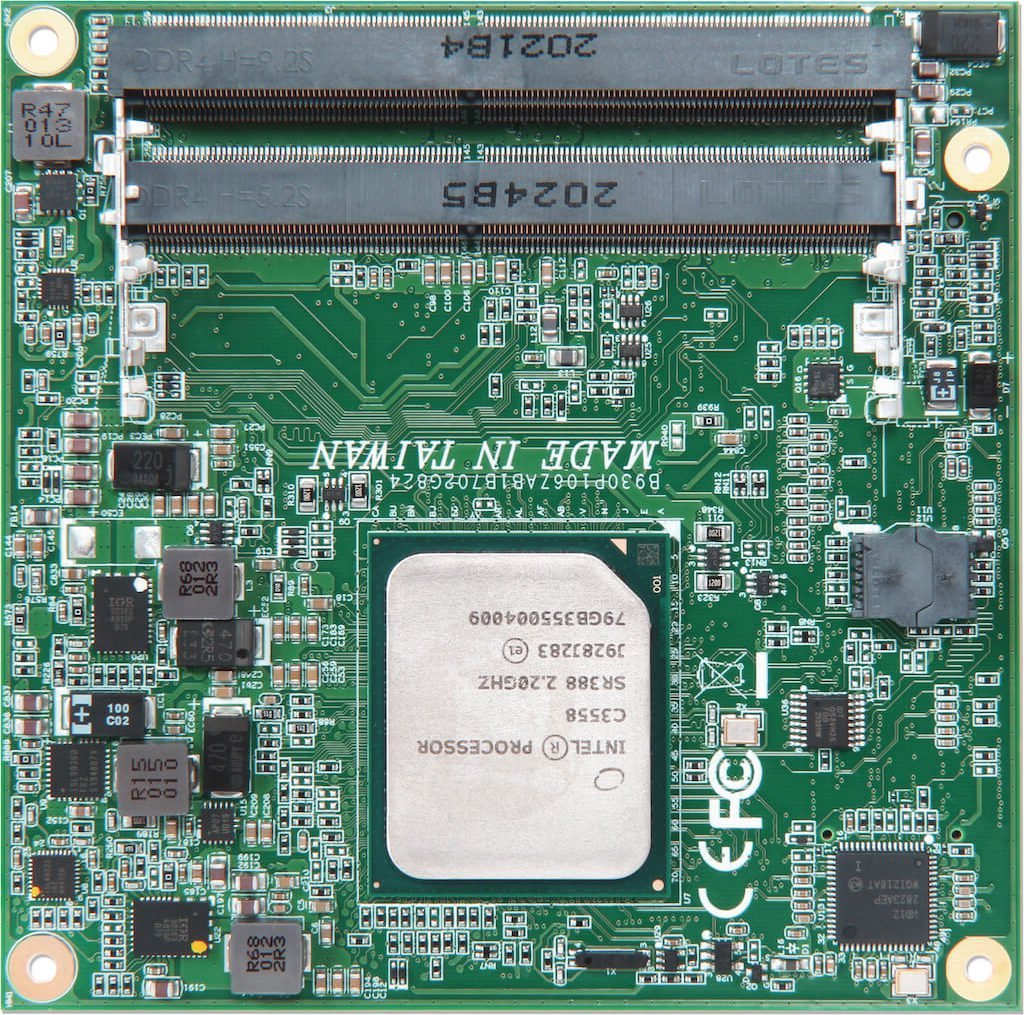

Type 7 COM Express? 3.0模塊計算機PCOM-B702G搭載英特爾凌動處理器與4個10GbE局域網絡接口(根據處理器型號)與DDR4修正錯誤內存小外形雙列直插式內存模塊最高達64GB，比前一代有更多圖形接口在10GbE與PCIe線路，適合網通、微服務器及其他需低耗能與支持高運算能力的網通應用，并與Type 7 carrier板兼容
| Model Name | PCOM-B702G |
|---|---|
| Form Factor (mm) | COM Ecpress? (95 X 95mm) |
| COM Type | Intel? Atom? Processors* Intel? C3308 Intel? C3338 Intel? C3508 Intel? C3558 Up to 4 CPU cores* 4MB to 8MB cache* |
| CPU/ Clock/ Cache | DDR4 1866/2133 MT/s* Non-ECC/ECC* Single/Dual Channel* |
| PCI Express | Up to 1x PCIe Gen3 x4 4x PCIe Gen3 x1 |
| Ethernet | Intel? I210IT 4x KR (10GbE) |
| Sound | N/A |
| Graphic Controller | N/A |
| Carrier Board | PCOM-C701 (Type 7) PCOM-C702 (Type 7) |
| 產品 | 訂購零件編號 |
|---|---|
| PCOM-B702G-C3558 | AB1-3H49 |
| PCOM-B702G-C3508 | AB1-3J40 |
| PCOM-B702G-C3338 | AB1-3H46 |
| PCOM-B702G-C3308 | AB1-3H45 |
| 配件 | 訂購零件編號 |
|---|---|
| Cooler | TBD |
| Heat Sink | B830A920 |
| Heat Spreader | TBD |
| PCOM-C701 (ATX Carrier board) |
AB1-3J61Z |
| PCOM-C701-BMC (ATX Carrier board) |
AB1-3J60Z |
