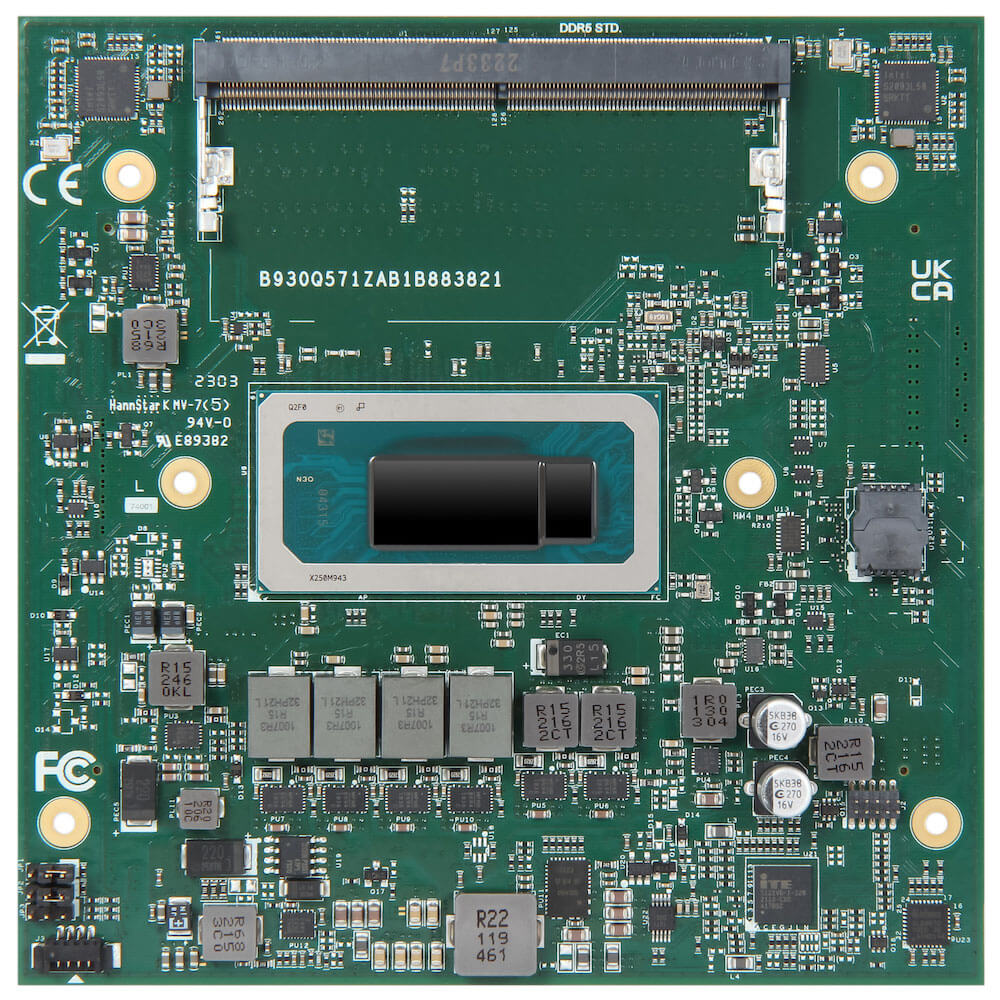

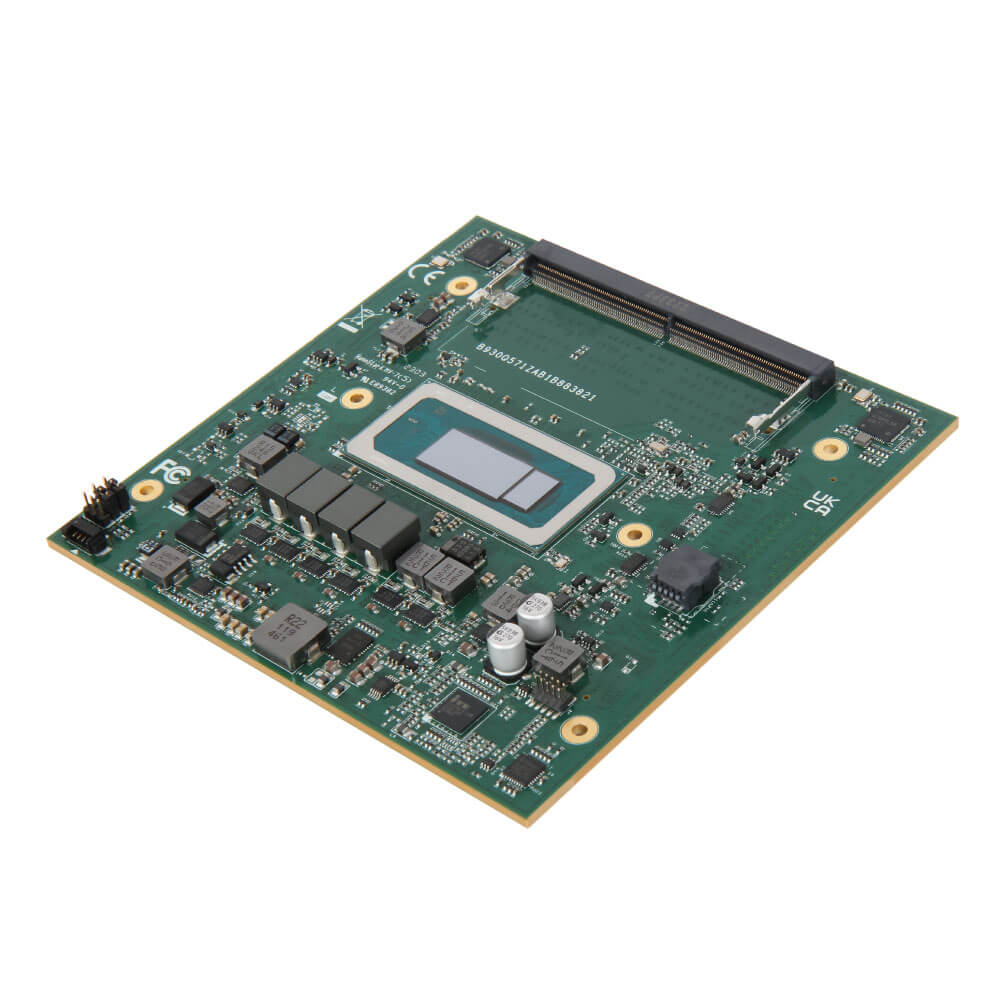

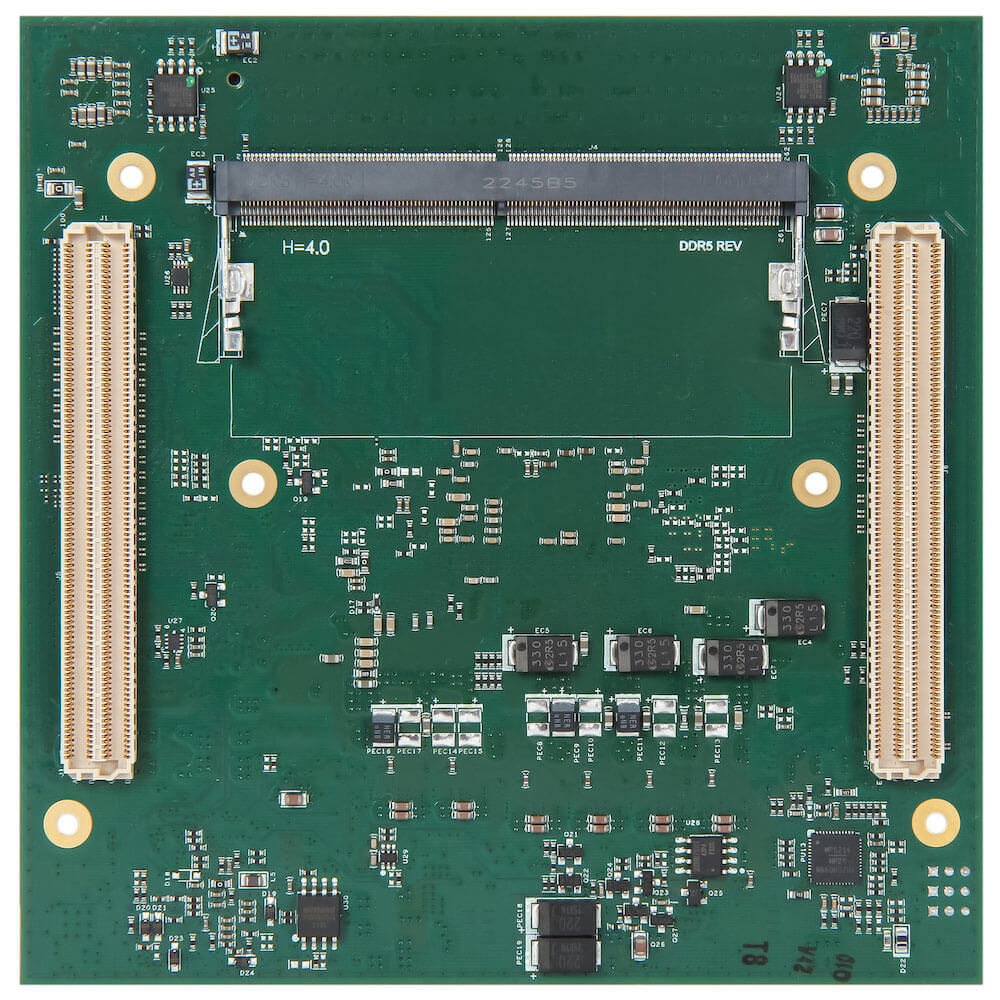

PCOM-B883VG2 是基于 Intel? 第12/13代 H/P/U系列平臺的 COM-HPC 模塊。 它與 COM-HPC 1.15 標準兼容。 該平臺采用 Intel 7 光刻技術和 VNNI 指令集，提供先進的計算能力和 15~45W 的熱量和工業使用條件，適用于廣泛的應用。 PCOM-B883VG2 在選定的 SKU 上支持最高 PCIe Gen5 x8，以 及用于高速 PCIe 存儲的額外 2 個 Gen4 x4 通道，以及 2 個非 ECC DDR5 SO-DIMM，適用于關鍵任務使用條件和使用 TSN 的 AI 邊緣計算。 該模塊還 提供 8 個 PCIe Gen3 x1 通道、2 個 USB4、2 個 USB 3.2 Gen2 和 2 個 SATA III。 完整且靈活的 I/O 容量也映射到廣泛的工業應用。
| CPU and General | |||
| Form Factor | |||
| Core i7-13800HE, 6P + 8E/20T, 24 MB (45w) | |||
| Core i5-13600HE, 4P + 8E/16T, 18 MB (45w) | |||
| Core i3-13300HE, 4P + 4E/12T, 12 MB (45w) | |||
| Core i7-1370PE, 6P + 8E/20T, 18 MB (28w) | |||
| Core i5-1350PE, 4P + 8E/16T, 12 MB (28w) | |||
| Core i3-1320PE, 4P + 4E/12T, 12 MB (28w) | |||
| Core i7-1365UE, 2P + 8E/12T, 12 MB (15w) | |||
| Core i5-1345UE, 2P + 8E/12T, 12 MB (15w) | |||
| Core i3-1315UE, 2P + 4E/8T, 10 MB (15w) | |||
| Processor U300E, 1P + 4E/5T, 8 MB (15w) | |||
| Core i7-12800HE, 6P + 8E/20T, 24 MB (45w) | |||
| Core i5-12600HE, 4P + 8E/16T, 18 MB (45w) | |||
| Core i3-12300HE, 4P + 4E/12T, 12 MB (45w) | |||
| Core i7-1270PE, 4P + 8E/16T, 18 MB (28w) | |||
| Core i5-1250PE, 4P + 8E/16T, 12 MB (28w) | |||
| Core i3-1220PE, 4P + 4E/12T, 12 MB (28w) | |||
| Core i7-1265UE, 2P + 8E/12T, 12 MB (15w) | |||
| Core i5-1245UE, 2P + 8E/12T, 12 MB (15w) | |||
| Core i3-1215UE, 2P + 4E/8T, 10 MB (15w) | |||
| Celeron 7305E, 1P + 4E/5T, 8 MB (15w) | |||
| Chipset | SoC | ||
| Memory |
|
||
| Graphics | Intel? Gfx up to 96 EU | ||
| Display | 3x DDI, eDP | ||
| Sound | Intel? High Definition Audio | ||
| Carrier Board | PCOM-C880 (COM-HPC Client Carrier) | ||
| I/O Interface | |||
| SATA | 2x SATA (share with PCIe) | ||
| USB |
|
||
| Ethernet | Intel? I226 series | ||
| Serial I/O | GPIO | 12 bit GPIO (default 6 input/6 output) | |
| I2C | Baud Rate : 400KHz | ||
| SMBus | Baud Rate : 100KHz | ||
| UART | TX/RX signal only | ||
| PCI Express Gen4 | 1x Gen5 x8 (selected SKU), 2x Gen4 x4 | ||
| PCI Express Gen3 | 8x Gen 3.0 x1 (2 lanes share with SATA) | ||
| Display | Default | Options | Resolution |
| eDP 1.4 | eDP up to HBR3 | 7680 x 4320@60Hz | |
| DDI | DP up to HBR3 | 7680 x 4320@60Hz | |
| DP up to HBR3 | 7680 x 4320@60Hz | ||
| DP up to HBR3 | 7680 x 4320@60Hz | ||
| Security | TPM 2.0 | ||
| MECHANICAL & ENVIRONMENT | |||
| Dimension | 120mm x 120mm | ||
| Power DC IN | Normal: +12V DC AT/ATX mode |
||
| Storage Temperature | -40°C to 85°C | ||
| Operating Temperature | 0°C to 60°C -40°C to 85°C (industrial SKU) |
||
| Certification | Contact us | ||
| MTBF | TBD | ||
| Vibration | TBD | ||
| OS | Windows 10/11 Ubuntu |
||
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B883VG2-12800HE | TBD | In Development |
| PCOM-B883VG2-12600HE | TBD | In Development |
| PCOM-B883VG2-12300HE | TBD | In Development |
| PCOM-B883VG2-1270PE | TBD | In Development |
| PCOM-B883VG2-1250PE | TBD | In Development |
| PCOM-B883VG2-1220PE | TBD | In Development |
| PCOM-B883VG2-1265UE | TBD | In Development |
| PCOM-B883VG2-1245UE | TBD | In Development |
| PCOM-B883VG2-1215UE | TBD | In Development |
| PCOM-B883VG2-7305E | TBD | In Development |
| Product | Ordering P/N | Status |
|---|---|---|
| Heatsink | TBD | In Development |
| Heatspreader | TBD | In Development |
| PCOM-C880 (ATX carrier board) |
AB1-3L34Z | In Development |
