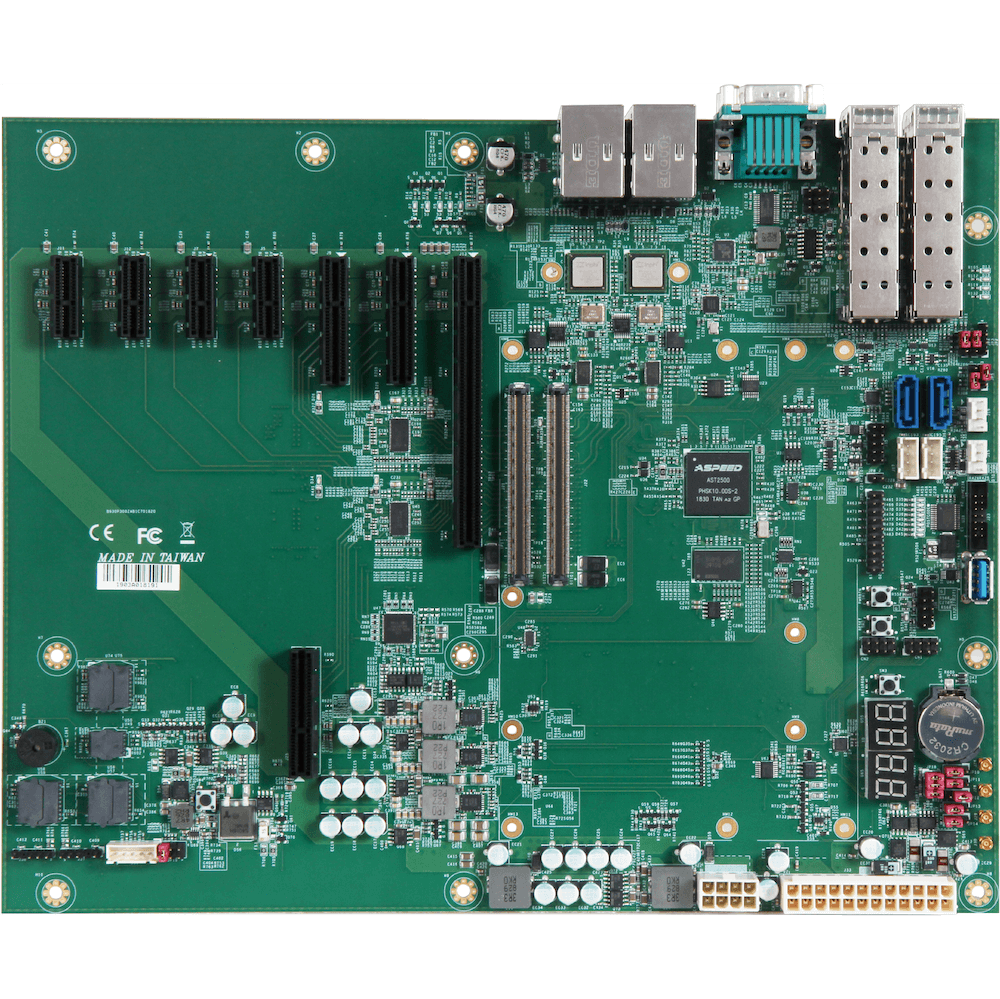

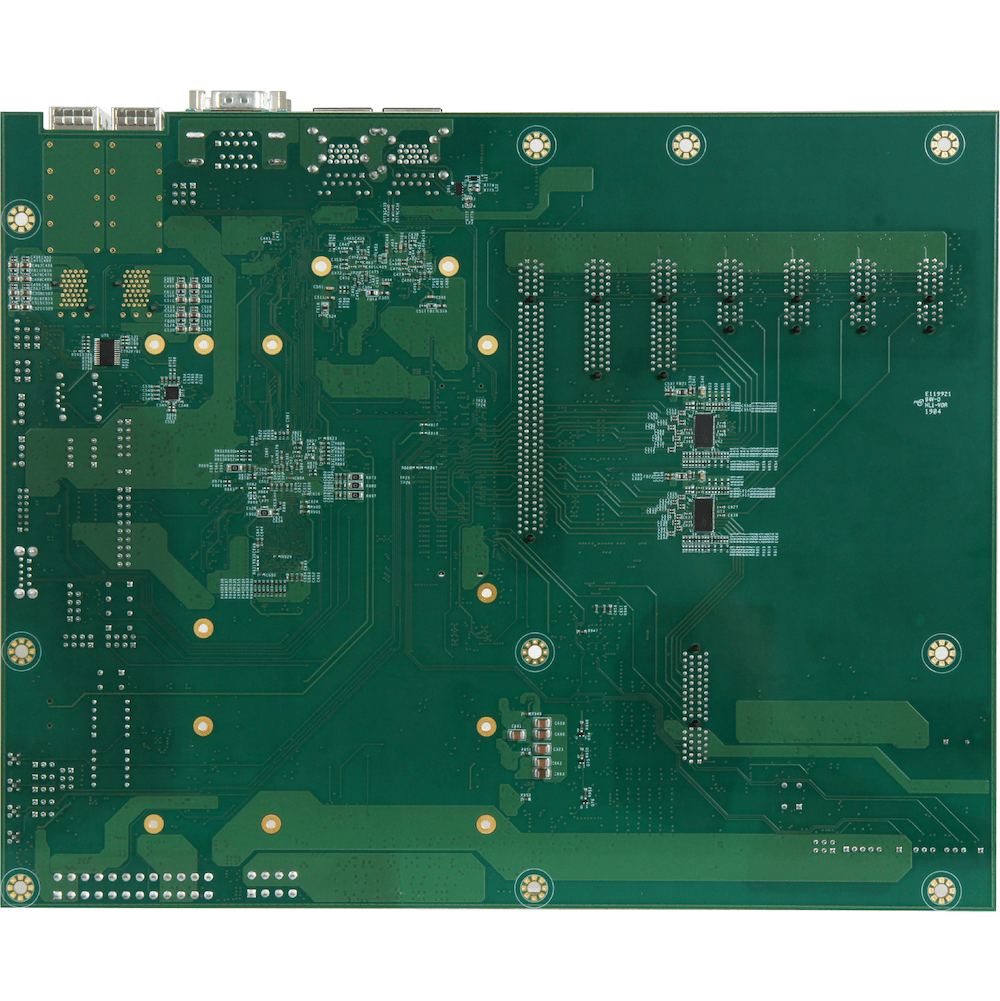

通過瑞傳驗證，ATX尺寸載板PCOM-C701可連接Type 7 COM Express模塊計算機，并支持4x USB 3.0, 32x PCIe線路, 4x 10高速以太網(wǎng)絡(luò)與BMC AST2500。并且提供Type 7 COM Express廣泛的裝置連接原型與彈性。
| Model Name | PCOM-C701 |
| Form Factor (mm) | ATX (305 X 244mm) |
| COM Type | Depends on Module |
| CPU/ Clock/ Cache | Depends on Module |
| PCI Express | 1x PCIe Gen3 x16 3x PCIe Gen3 x4 4x PCIe Gen3 x1 |
| Ethernet | 1x GbE, 4x 10GbE SFP+ |
| Sound | N/A |
| Graphic Controller | N/A |
| Carrier Board | N/A |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-C701 | AB1-3J61Z | Available |
