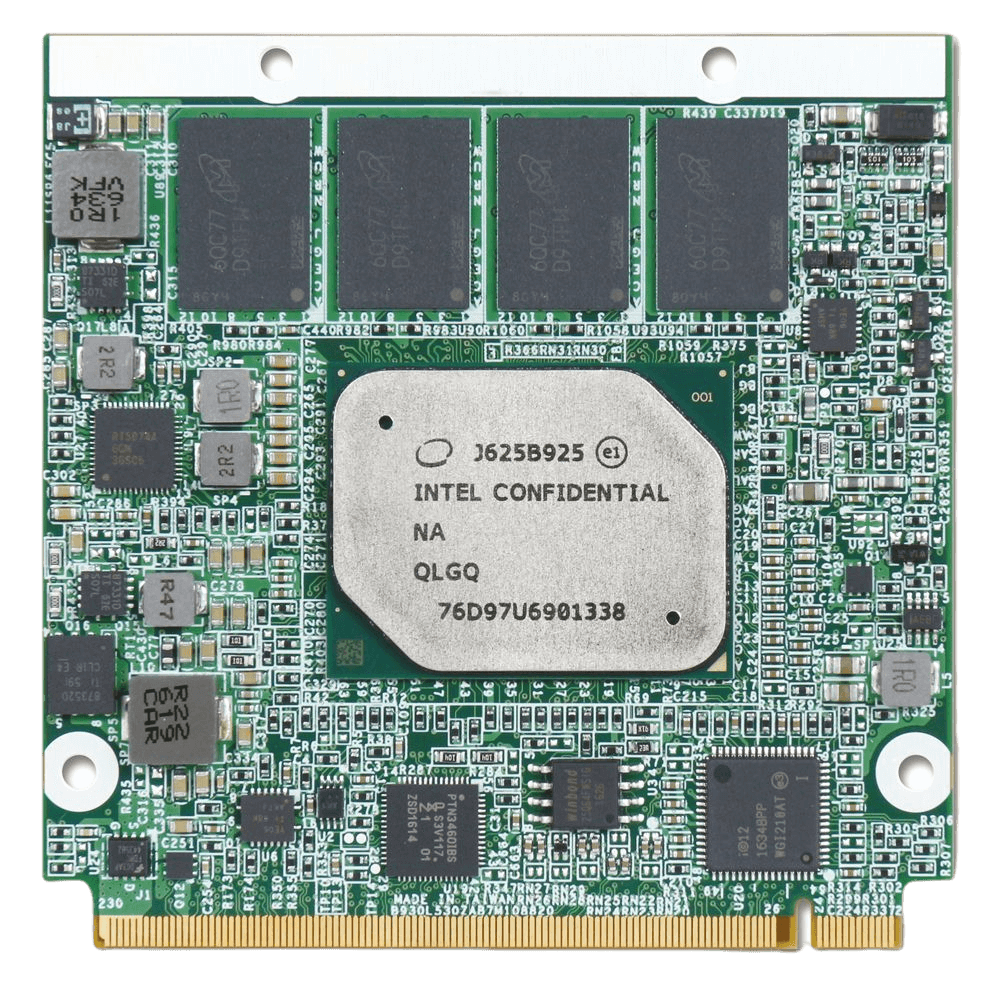

PQ7-M108

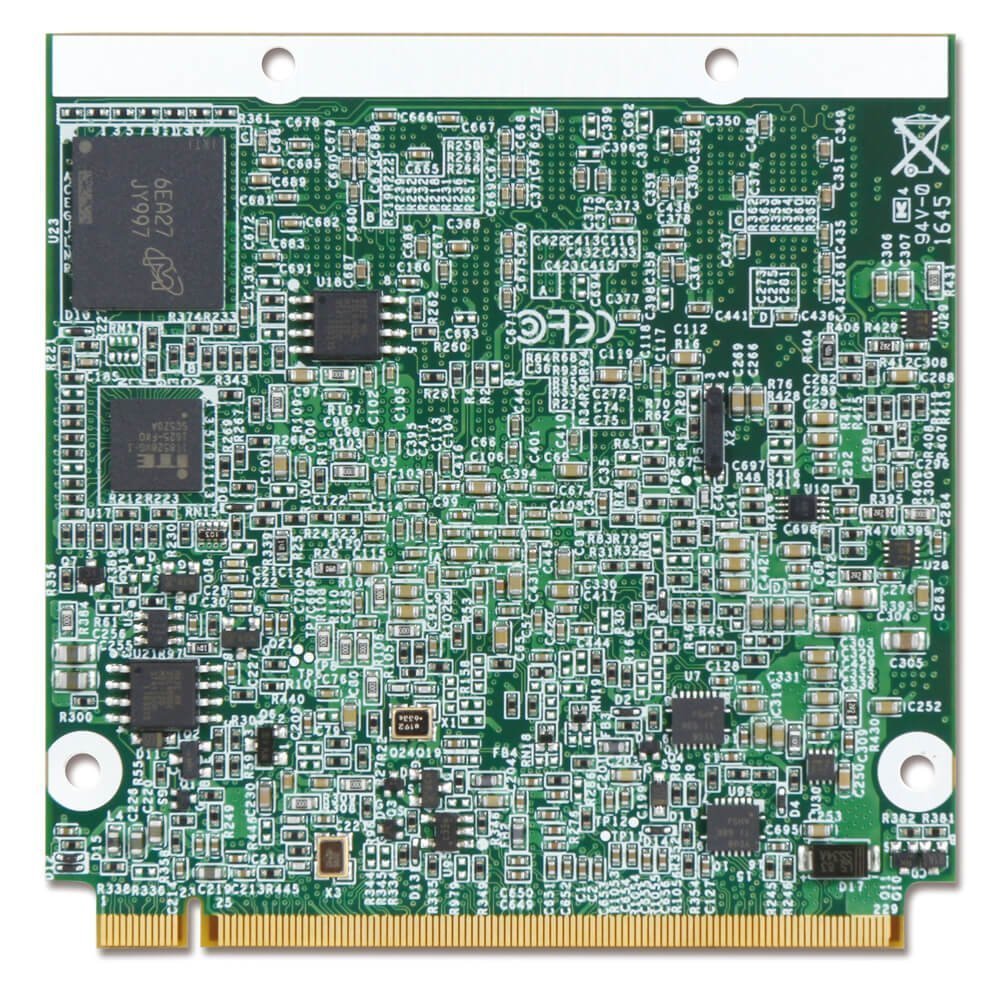

PQ7-M108 - 圖片 2

PQ7-M108

Qseven module by Qseven 2.1 based on Intel? Atom? / Pentium? / Celeron processors (Apollo Lake) with LPDDR4 SDRAM up to 8GB, 24bit LVDS, DP/HDMI

產品特色

  • On Board LPDDR4 DRAM and up to 8GB
  • 24-bit LVDS, HDMI/DP output
  • Four PCI Express lanes
  • Support three USB 3.0 or four USB 2.0
  • On Board eMMC 5.0 (Optional)

產品描述

PQ7-M108 is designed with Intel? Atom?/ Pentium?/ Celeron? processors (Apollo Lake) which featured with higher graphic performance and wider memory bandwidth than the previous platform. Benefit from Intel Apollo Lake industrial grade processor design, the operating temperature supports -40°C to 85°C. With qualified industrial-grade components selecting, PQ7-M108 is aimed to be widely applied on automation, security, transportations and so to different kinds of harsh environment applications.

規格

CPU Intel Atom? x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom? x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom? x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel? Celeron? Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel? Pentium? Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Format Qseven? 2.1, 70 x 70 mm
Chipset SoC (System-On-Chip)
DRAM Up to 8GB LPDDR4 – 2133/2400, Dual Memory Channel
Display Interface LVDS/eDP, DP/HDMI
Storage Up to 64 GB onboard eMMC 5.0 flash
Network 1x 10/100/1000 GbE (Intel? i210)
Bus Interface 1x SDIO, 2x SPI, 1x I2C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, 1x WDT, 1x JTAG
Serial Interface 2x SATA 3.0 (6 Gb/s); 4x PCIe x1 Gen2
USB 3x USB 3.0 4x USB 2.0
Dimensions 70×70 mm


訂購指南

Ordering Guide
Product Ordering P/N Status
PQ7-M108-N3350-4G-8G AB7-3019Z Available
PQ7-M108-N4200-4G-8G AB7-3054Z Available
PQ7-M108-E39xx-xG-xG Contact us Available

配件

Accessory
Accessory Ordering P/N Status
Heat Spreader B8308940 (for N3350/N4200 ) B8309030 (for E3930/E3940/E3950) Available
Heat Sink Set B8308970 (for N3350/N4200) B8308980 (for E3930/E3940/E3950) Available
PQ7-C201 AB1-3B45 Available
