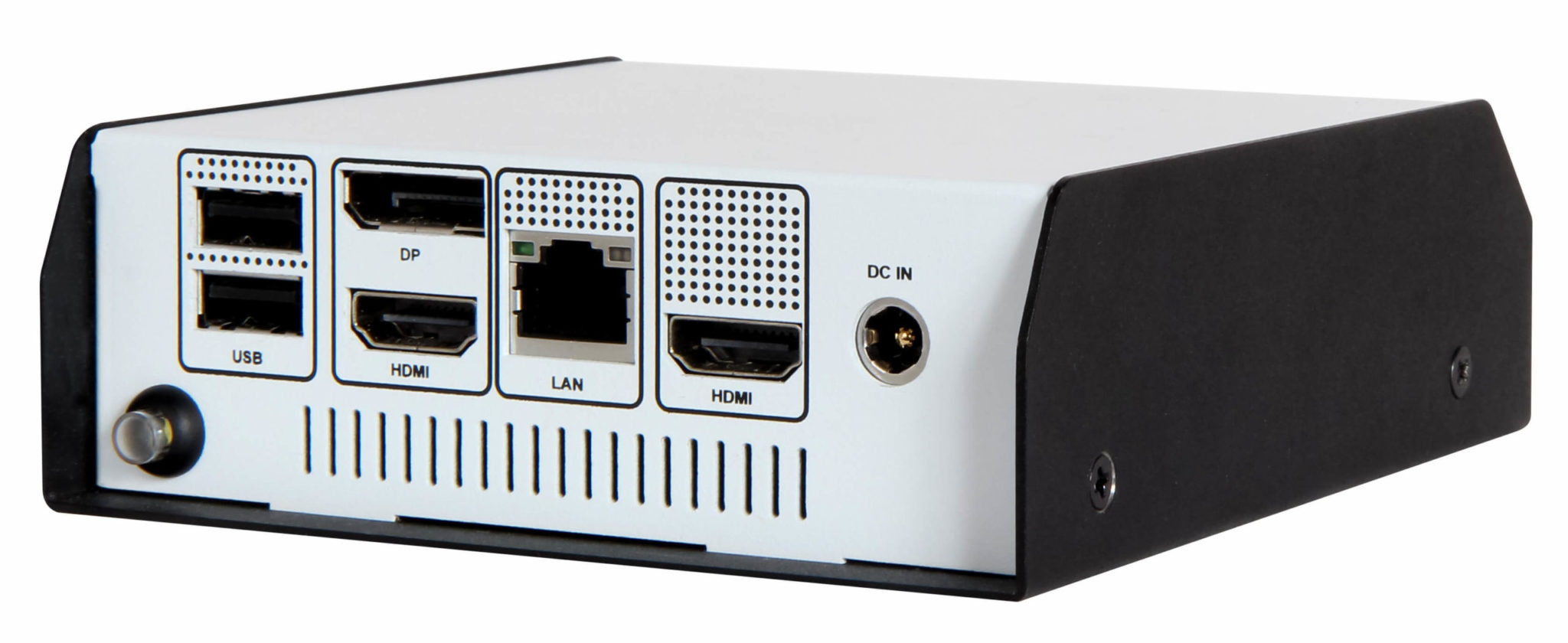

RICH-61E0

RICH-61E0

Embedded fan-less system with Intel? 7th Gen Kabylake-U based NUC board

產品特色

  • Supports Intel? 7th Gen Kabylake-U Core? MCP Processors
  • Supports Dual Channel DDR4 SO-DIMM 2133 ,up to 32GB
  • Supports 2 x HDMI, 1 x DP
  • Support Dual Display (HDMI2 + DP or HDMI 1 + HDMI 2)
  • Support xUSB 3.0, 1 x USB 3.1 (Type C), 1 x IR
  • Support M.2 slots 1 x Key E(Supports 2230) and 1 x Key M(Supports 2260)

產品描述

RICH-61E0 builds on Intel? 7th Gen (Kabylake-U) Core? MCP Processors that can support dual channel DDR4 SO-DIMM memory and Support one Gigabit Ethernet port and M.2

規格

Model RICH-61E0
M/B WUX-7100 U/7300 U
Form Factor NUC
System
CPU Intel? Kabylake-U Processor Ci5-7300U, 15W TDP(2C/4T) Intel? Kabylake-U Processor Ci3-7100U, 15W TDP(2C/4T)
BIOS AMI UEFI
Memory DDR4 SO-Dimms/Up to 32GB
Graphic Controller Intel? HD Graphics 620
Super I/O EC
Storage 1x SATA III port 1x M.2 Key M 2260 for storage
External I/O
Serial N/A
USB 3x USB 3.0 1x USB 3.1 Type C
Display 2x HDMI, DP
Ethernet Intel? I219LM
PS/2 N/A
Audio Mic-in or Line-out
D I/O N/A
Expansion 1x M.2 Key E 2230 for wireless module
PWR
System DC 12V~19V
Environment
OP Temp. 0°C ~ 60°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz IEC 60068-2-6
Shock 50G, 11 msec, IEC 60068-2-27
Mechanical
Dimension(WxDxH) 113 x 135 x 41 mm
Weight 1.5 Kg

訂購指南

AS5-3546 (R).ATO. RICH-61E0. NUC System
