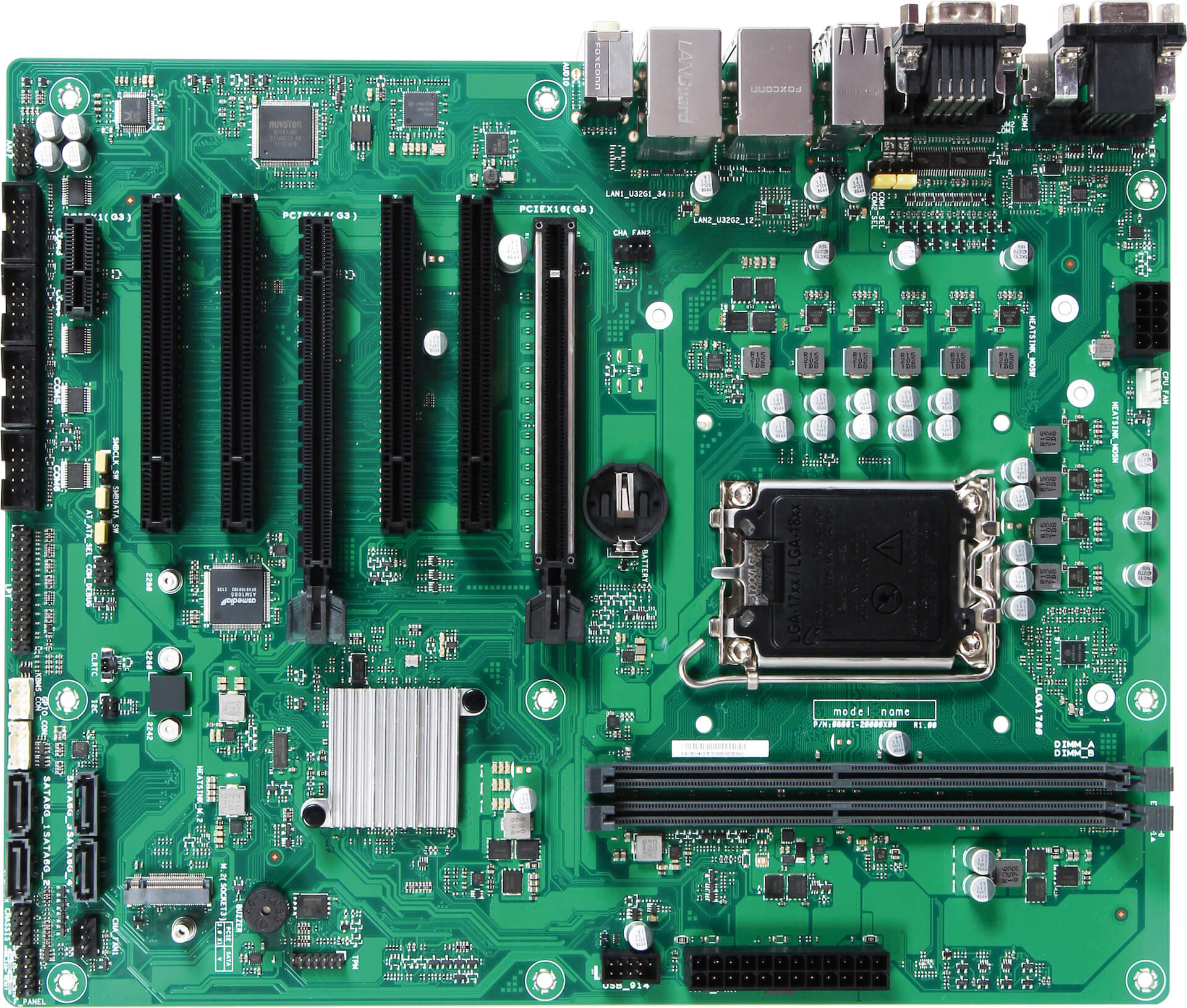

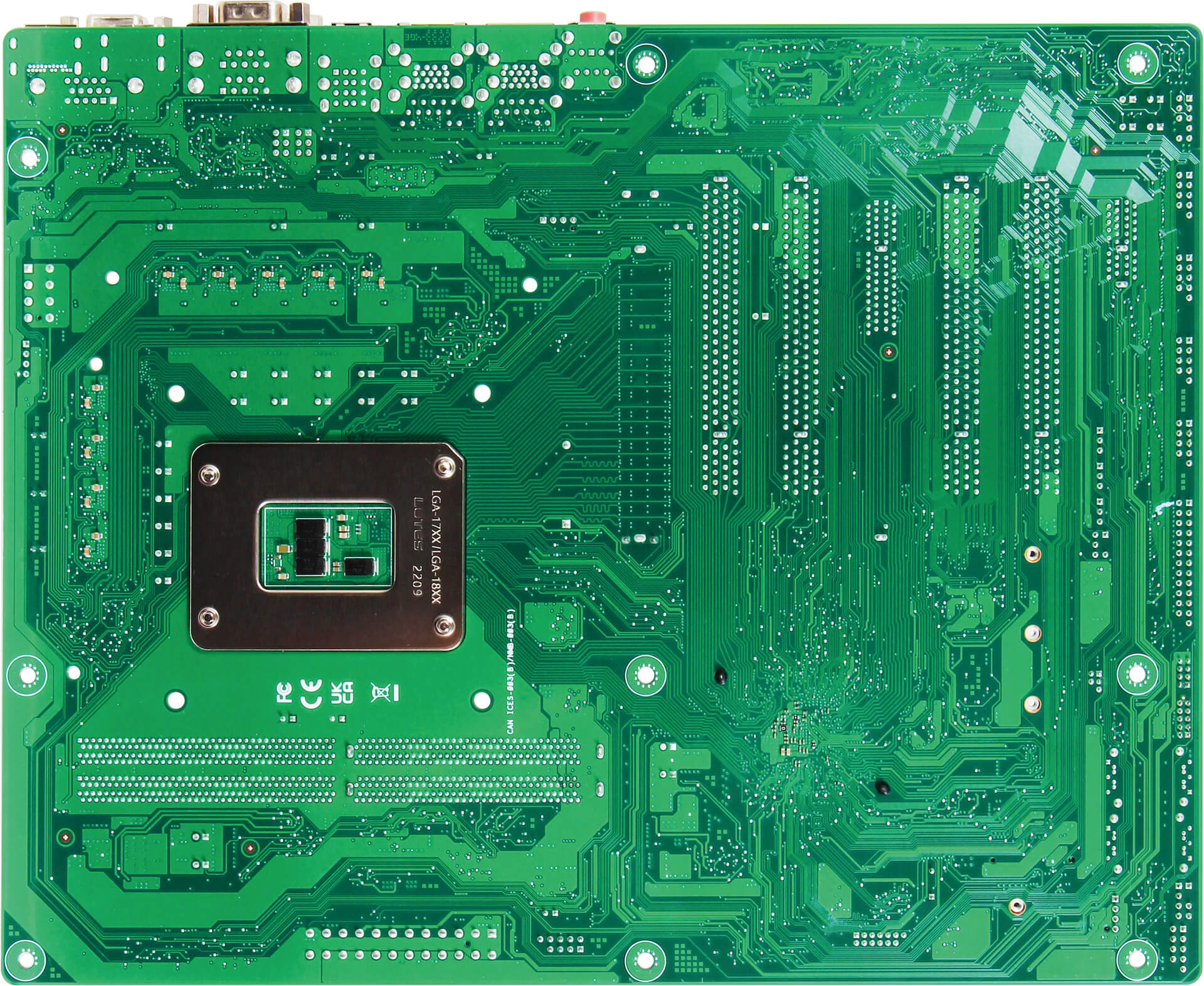

RUBY-D813 基于 Intel? H610E 芯片組和臺式機處理器，包括 Intel? 12th/13th Gen CoreTM i3/i5/i7/i9 Sku。此主板支持 DDR4 、PCIe 和 SATAIII。這些功能可幫助您構建高性能和穩定的系統
| 特點 | |
| 處理器 | Intel? 12th/13th Gen Core? Processors CPU in LGA1700 package |
| 芯片組 | Intell? H610E |
| BIOS | AMI uEFI BIOS (SPI ROM) |
| 內存 | Support up to 64GB DDR4 Non-ECC on two Long-DIMM socket,up to 3200MHz |
| 儲存裝置 | 4x SATAIII ports |
| 看門狗定時器 | Programmable by embedded controller |
| 硬件監控 | System monitor(Voltage,Fan Speed and Temperature) |
| 擴充接口 | – 2x PCIe x16 slots(1x PCIe x4 signal) – 1x PCIe x1 slots , 4x PCI slots – 1x M.2 (Key M) type 2242/2260/2280(SATA/PCIe x1 mode) |

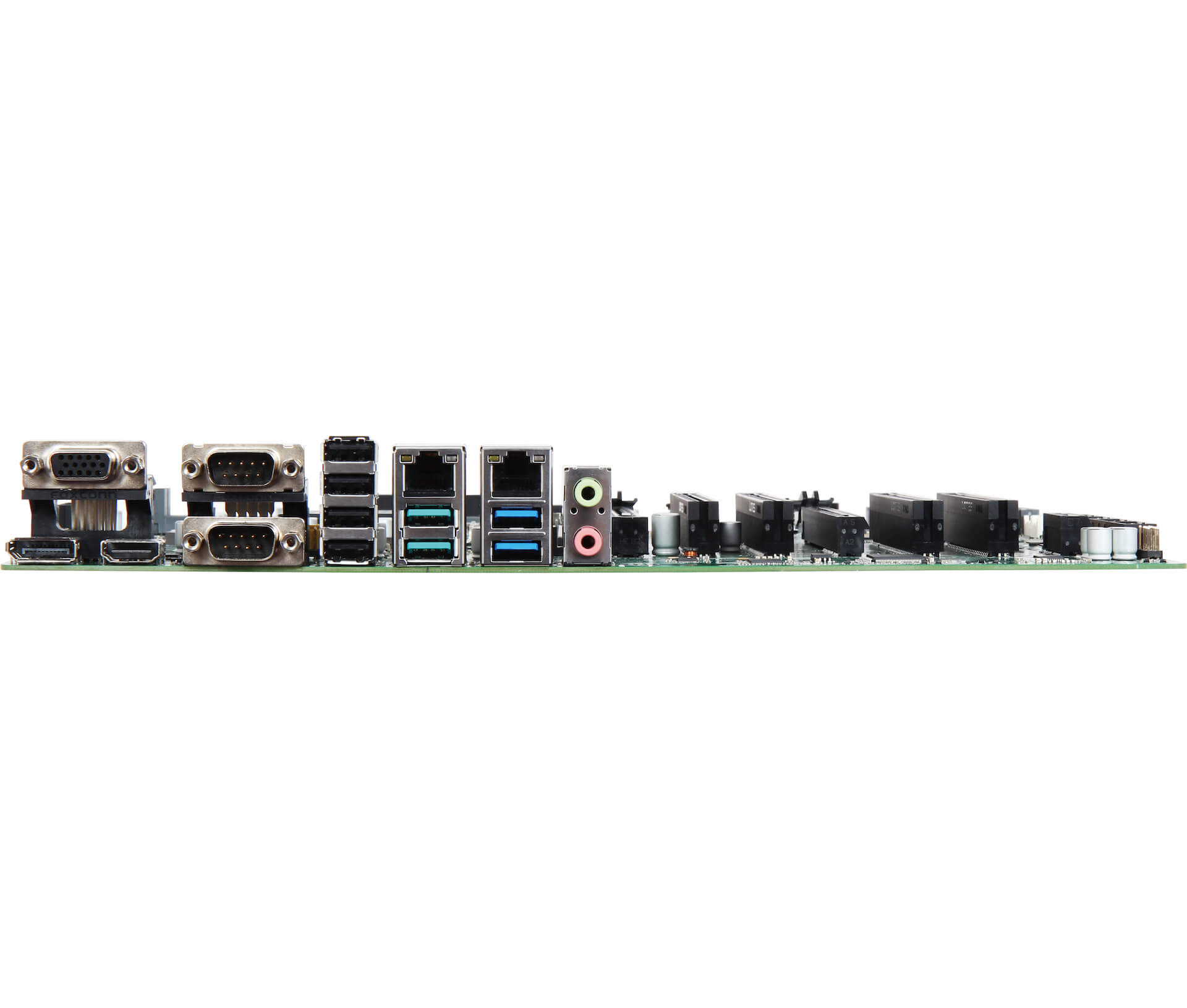

| I/O 輸入與輸出 | |
| 超級輸入與輸出 | NCT6126D |
| 音源 | Audio Jack on rear I/O with Line-out /Mic-in with Realtek ALC897 Audio controller |
| 乙太網絡 | – Intel? I219V and Intel? I210AT Ethernet controller – 2x RJ45 connectors on rear I/O |
| 串行端口 | – 2x RS232/422/485 port one on REAR I/O, one on board header – 4x RS232 port on pin header |
| USB | – 4x USB3.2(Gen2) and 4x USB 2.0 ports on rear I/O – 2x USB2.0 on pin header |
| GPIO | 8-bit configurable controller by embedded controller |
| 顯示器 | |
| 圖形處理器 | – Intel? graphic UHD 630 supports DirectX 12, OpenGL 4.5 |
| 顯示器界面 | – DP:DP port on rear I/O, resolution up to 4096×2160 – VGA: One VGA port on rear I/O resolution up to 1920×1200 – HDMI:One HDMI connector on rear I/O, resolution up to 4096×2160 |
| 機構與環境 | |
| 尺寸 | 304.8mm(L) x 243.8mm(W) x 1.6mm(H) |
| 電源供應 | ATX |
| 環境 | – Operation temperature:0~60 ?C – Storage temperature: -20~80 ?C – Relative humidity:5~95%,non-condensing |
| MTBF | Over 100,000 hours at 40°C |
| AB1-3P61 | RUBY-D813-H610E.ATX IMB.LGA1700 H610E. w/DDR4/VGA/DP/HDMI/Dual GbE / COM/Audio/USB |
| One RUBY-D813-H610E Main board |
| One I/O shield |
| One SATA cable |
| One CPU coolor bracket |
