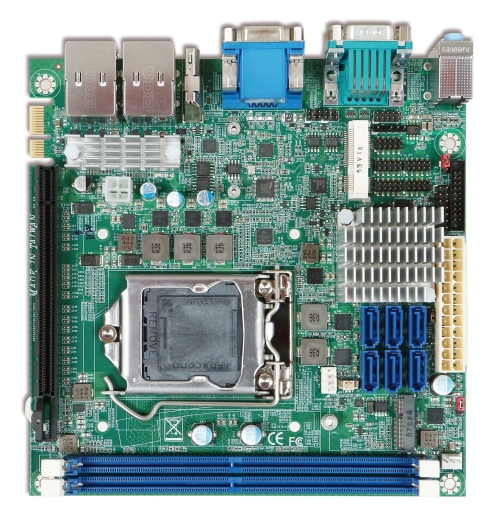

WADE-8017 搭載英特爾? Q170/C236/H110 芯片組和臺式機處理器，包括英特爾? 第七代和第六代酷睿? i3/i5/i7 SKU。 該主板支持 DDR4、PCIe 3.0 和 SATA III。 這些功能幫助您構建高性能和穩定的系統
| MODEL | WADE-8017 |
| Form Factor | Mini-ITX |
| CPU | Intel? 7th and 6th Gen Core? Processors CPU in LGA1151 package |
| Chipset | Intel? Q170/H110/ C236 PCH |
| BIOS | AMI UEFI |
| Memory | 2x DDR4 DIMM up to 32GB |
| Expansion | 1x PCIe x16 slot 1x PCIe x1 Golden finger 1x M.2 type E socket 1x mini-PCIe socket |
| Display | DP/HDMI/VGA |
| Audio | Realtek ALC892 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-232/422/485 4x RS-232 |
| USB | 4x USB 3.0 2x USB 2.0 |
| Storage Device | 6x SATA (H110 just 4x SATA) |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 170 x 170mm |
| AB1-3D16 | (R).WADE-8017 Mini-ITX ESB.Q170 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
| AB1-3D75 | (R).WADE-8017-H110 Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
| AB1-3D76 | (R).WADE-8017-C236. Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
| AB1-3G16 | (R).WADE-8017-kBL Mini-ITX ESB.Q170 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
| AB1-3G13 | (R).WADE-8017-C236-kBL Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
| AB1-3G12 | (R).WADE-8017-H110-kBL Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
| One WADE-8017 motherboard |
| One Driver CD |
| One SATA Cable |
