WADE-8171
WADE-8171 - 圖片 2

WADE-8171

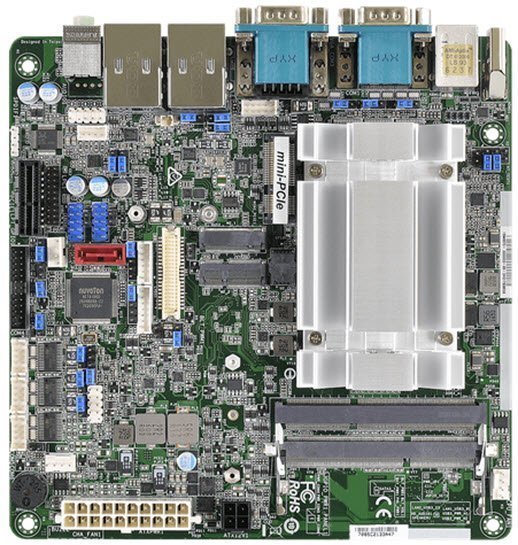

Intel? Celeron? Processor N3150/N3160 Based Mini-ITX Board with VGA, HDMI, LVDS, Dual GbE, USB 3.0, SATA III, mini-PCIe, and mSATA

產品特色

  • Intel? Pentium?/Celeron? Braswell SoC Processor
  • Supports Dual Channel DDR3L 1333/1600 MT/s, 2 x SO-DIMM, up to 8GB system memory
  • 1x HDMI, 1x D-Sub, 1x Dual Channel 24- bit LVDS
  • 4x USB 3.0, 4x USB 2.0, 2x SATA III ports
  • Supports 1 x mini-PCIe, 1 x mSATA(shared)

產品描述

WADE-8171 is based on Intel? Celeron? processor N3160. With dual-channel DDR3L memory and rich I/O sets, WADE-8171 empowers energy-efficient solutions for pointof-sale (POS) and industrial automation applications.

規格

MODEL WADE-8171
Form Factor Mini-ITX
CPU Intel? Atom? N3000 Family
Chipset N/A
BIOS AMI UEFI
Memory 2x DDR3L SO-DIMM up to 8GB
Expansion 1x PCIe x1 slot 2x mini-PCIe socket
Display VGA/HDMI/LVDS
Audio Realtek ALC887 HDA codec
LAN 2x GbE
Serial Port 2x RS-232/422/485 4x RS-232
USB 4x USB 3.0 4x USB 2.0
Storage Device 2x SATA
GPIO 8 bit
Others N/A
Dimension 170 x 170mm

訂購指南

Ordering Guide
AB1-3D63 (R).WADE-8171-N3150 Mini-ITX ESB.Intel? Braswell Quad Core Celeron? 2.08GHz (6W). w/DDR3L/VGA/LVDS/ HDMI/dual GbE LAN/SATA

包裝清單

Packing List
1x WADE-8171 motherboard
1x I/O shield
1x SATA cable
1x Driver CD
