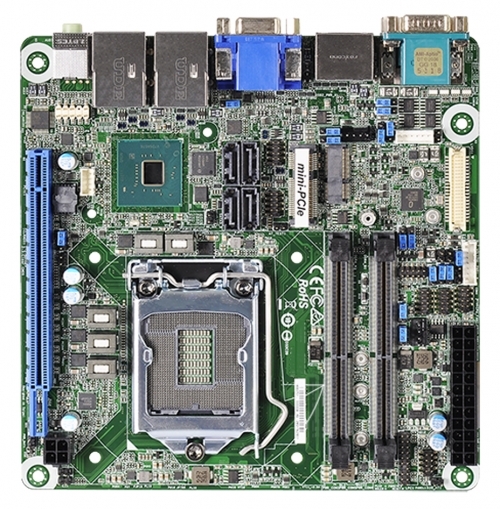

WADE-8211-Q370

搭載英特爾^?第8代酷睿?處理器 Mini-ITX配高達64G的DDR4 SO-DIMM、VGA 雙DP 端口、兩個 GbE LAN 端口、五個 COM 端口

Intel^? 8^th/9^th Gen Core? Processors support
Supports two SO-DIMMs suppor t DDR4 Non-ECC SDRAM up to 64GB
Supports dual Ethernet, five COM Ports, eight USB Ports, four SATA III Ports and Audio
Supports one PCIe x16(Gen3), one M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD and one mini-PCIe slot

WADE-8211-Q370 基于英特爾^? Q370 芯片組和臺式機處理器，包括英特爾^? 第八代/第九代酷睿? i3/i5/i7 SKU。此主板支持 DDR4、 PCIe 3.0 和 SA-TAIII。這些功能可幫助您構建高性能和穩定的系統

MODEL	WADE-8211-Q370
Form Factor	Mini-ITX
CPU	Intel^?Core? i3/i5/i7/ Pentium^? Celeron^?
Chipset	Intel^?Q370
BIOS	AMI UEFI
Memory	2x DDR4 SO-DIMM up to 64G
Expansion	1x PCIe x16 Gen 3 1x M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless 1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD 1x mini-PCIe slot
Display	VGA/Dual DP/LVDS
Audio	Realtek ALC887 HDA codec
LAN	2x GbE
Serial Port	3x RS-232 2x RS-232/422/485
USB	4x USB3.2 Gen1 4x USB2.0
Storage Device	Supports 4x SATA III ports Supports RAID 0, 1, 5, 10
GPIO	8 bit
Others	N/A
Dimension	170 x 170mm

AB1-3D63

(R).WADE-8211-Q370
Mini-ITX ESB.Q370 w/o ECC LGA1151.w/DDR4SO-DIMM /VGA/Dual DP/Dual GbE/COM/Audio/USB

One WADE-8211-Q370 Main board

One I/O shield

One Installation CD

One SATA cable

One CPU coolor bracket
